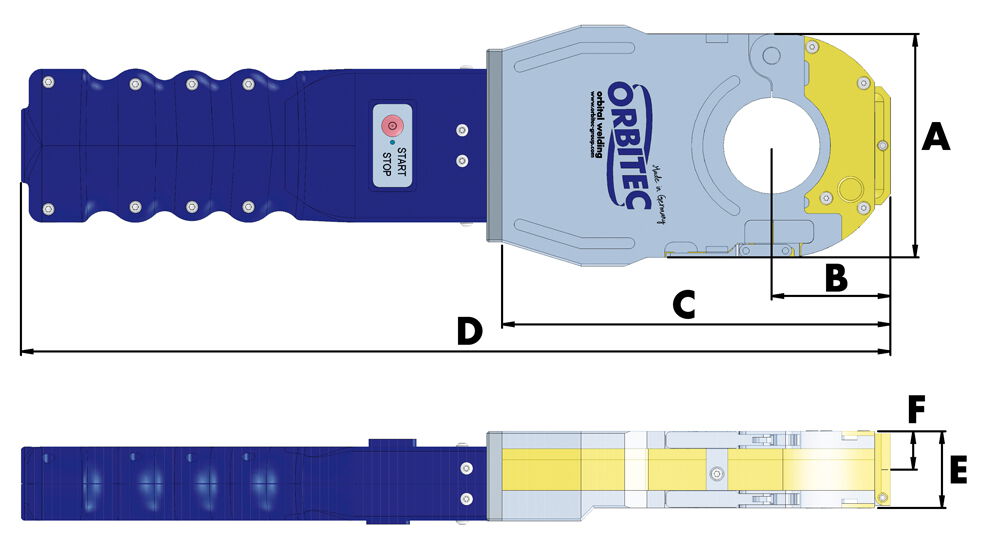

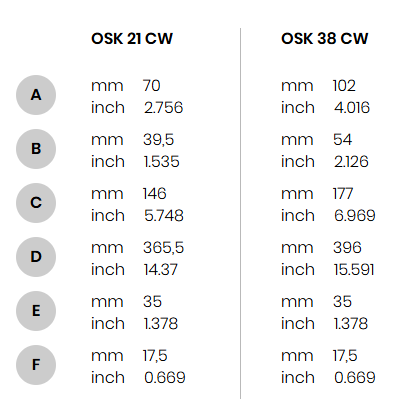

Our new generation of compact weld heads for high thermal capacities with a water-cooled collet housing and clamping levers.
Our new generation of compact weld heads for high thermal capacities with a water-cooled collet housing and clamping levers.
Weld head type:

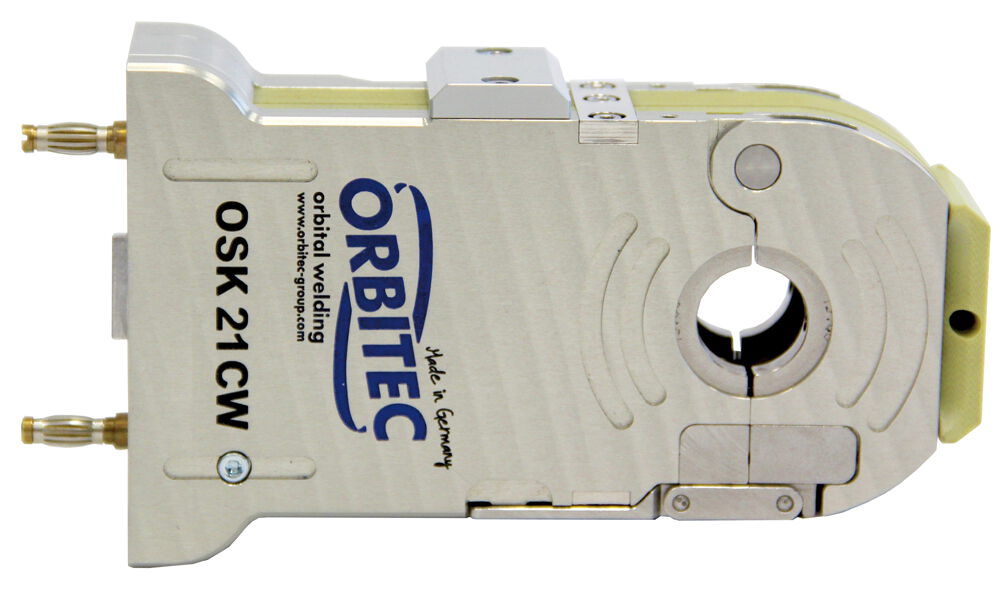

OSK 21 CW
Tube size:
OD 3,17 – 21,3 mm
Inch:
0,125″ – 0,839″
Weight:
1,0 kg
Item number:
1.0.2820 W
Both CW heads are operated using one handle and cable assembly.
Weld head type:

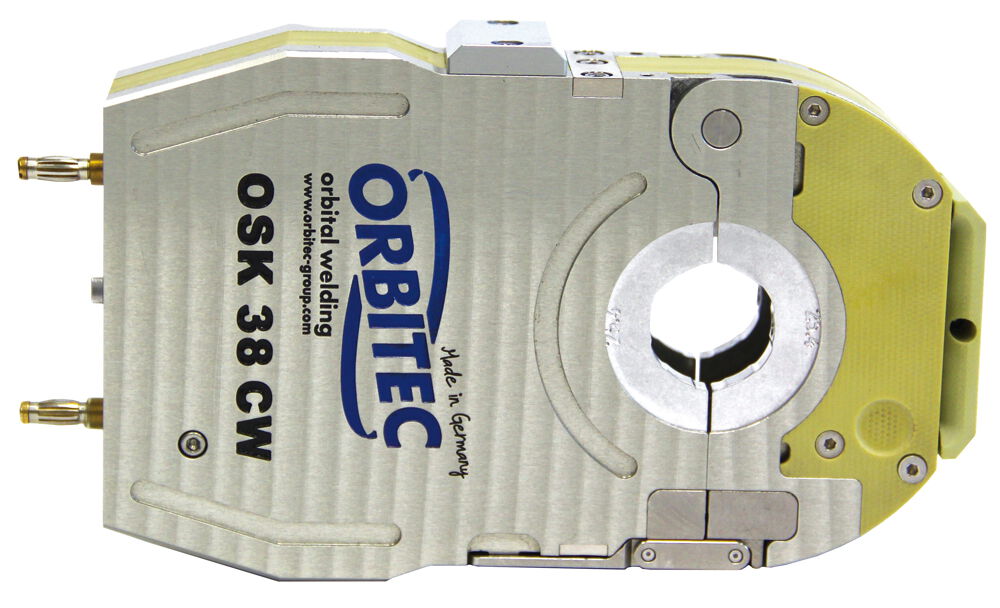

OSK 38 CW
Tube size:
DA 3,17 – 38,1 mm
Inch:
0,125″ – 1,500″
Weight:
1,4 kg
Item number:
1.0.2920 W

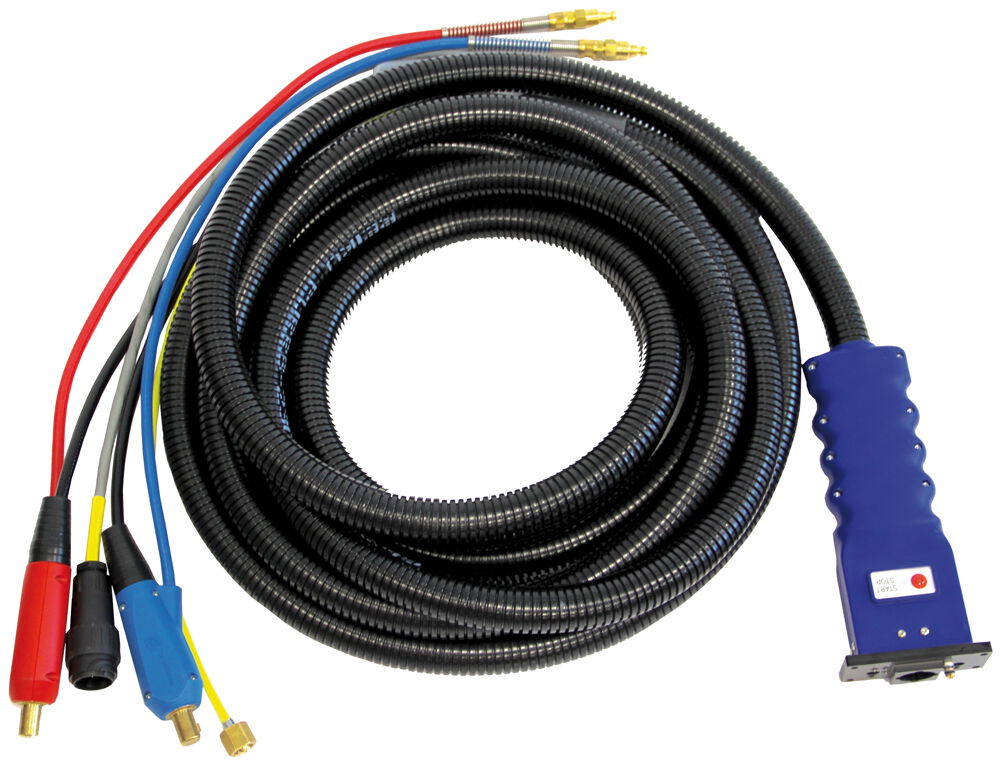

Consisting of a handle with control element (start/stop button and status display), weld head interface, motor / gearbox unit and 8 m hose package.
Item number:
1.3.2059

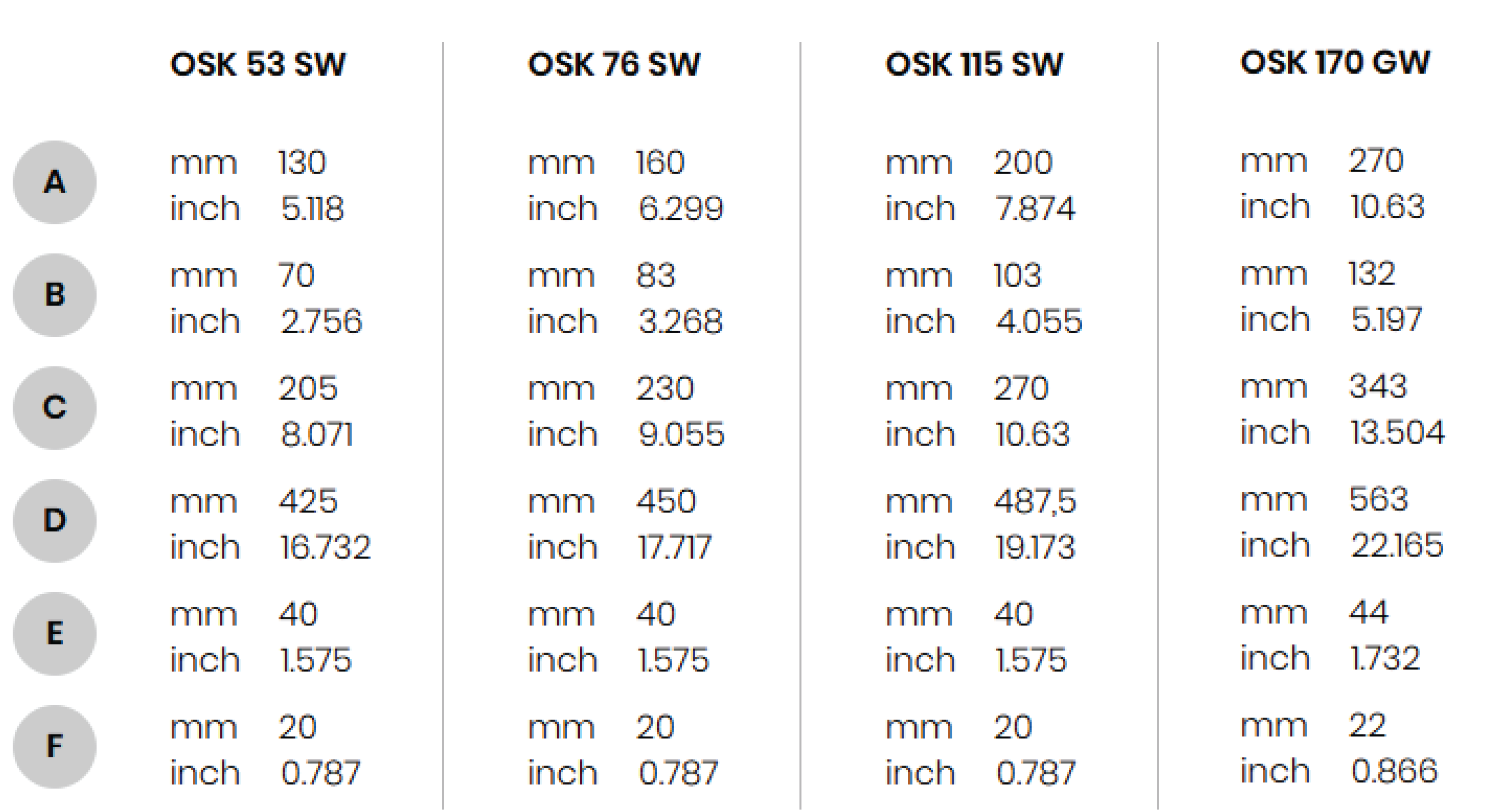

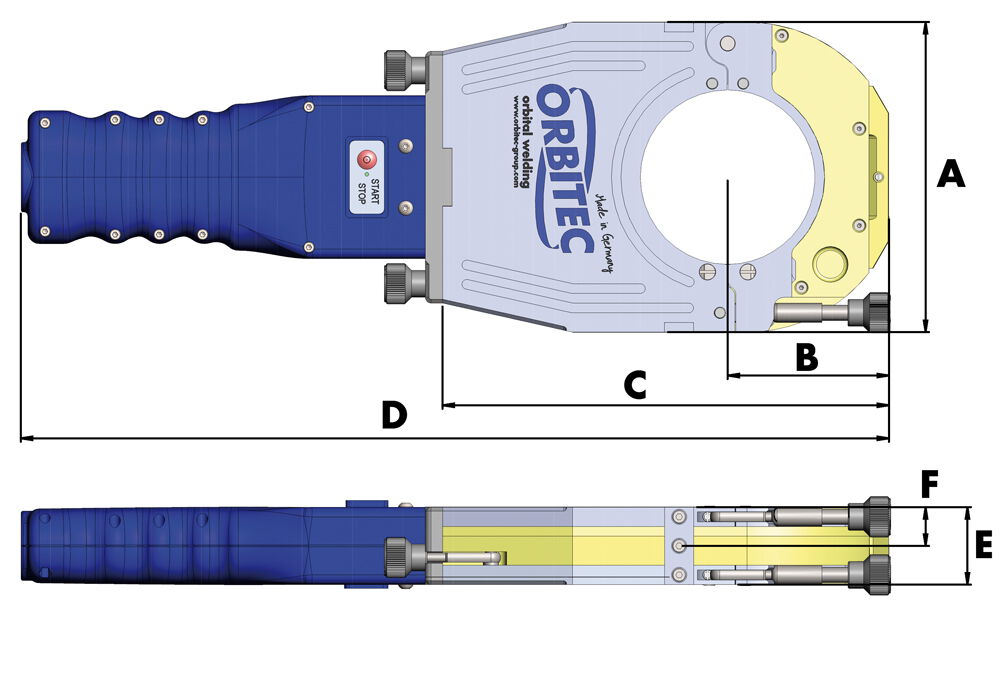

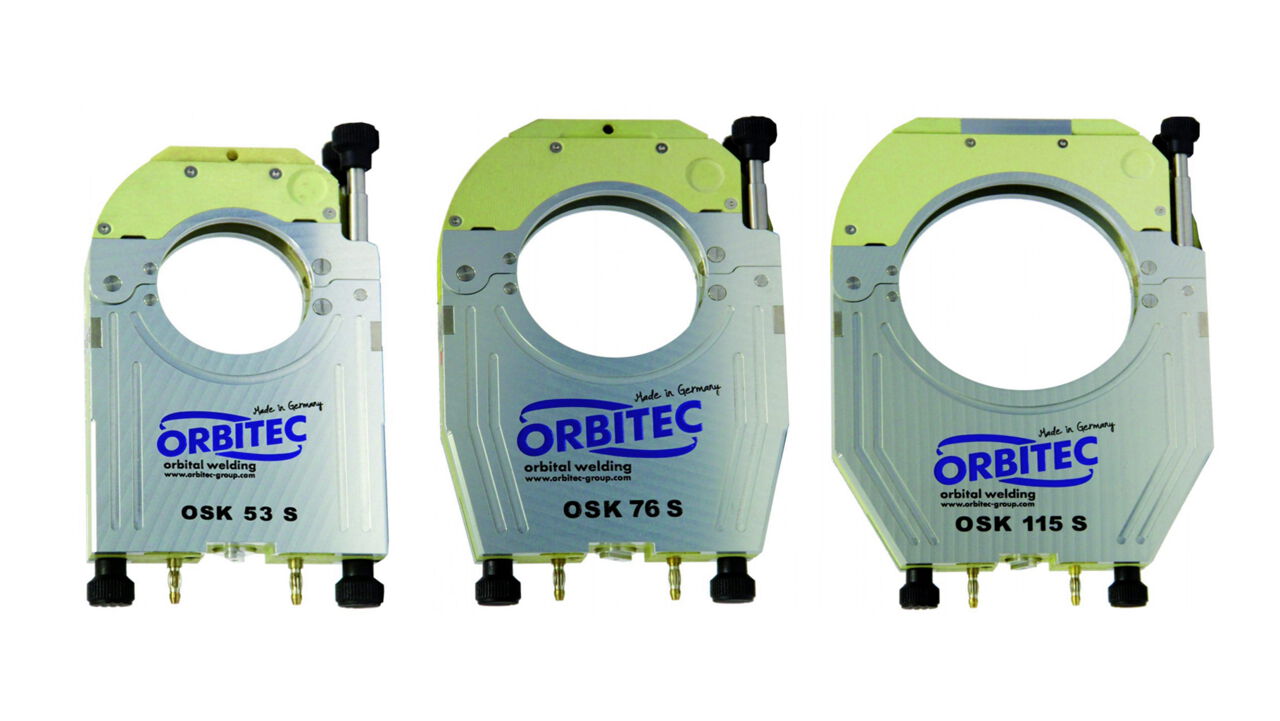

Our new generation of three OSK SW weld heads – even narrower, technically optimised and redesigned. For very high thermal capacities, we also offer the gascooled S series weld heads in a water-cooled SW version (the structural width stays the same). The closed water cooling system covers the bottom collet housing area.
Weld head type:

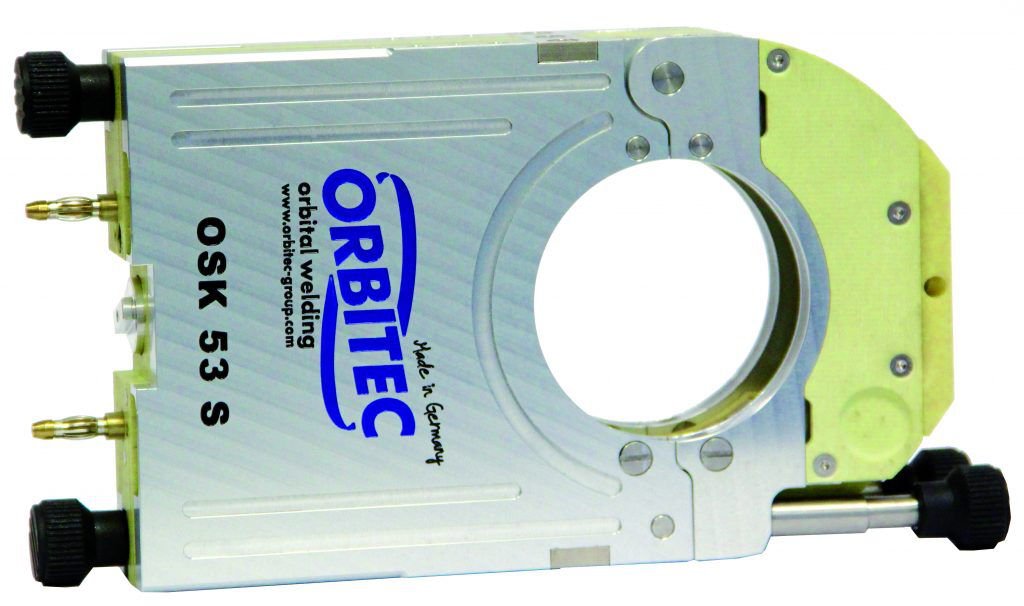

OSK 53 SW
Tube size:
DA 3,17 – 38,1 mm
Inch:
0,250″ – 2,087″
Weight:
2,1 kg
Weld head type:

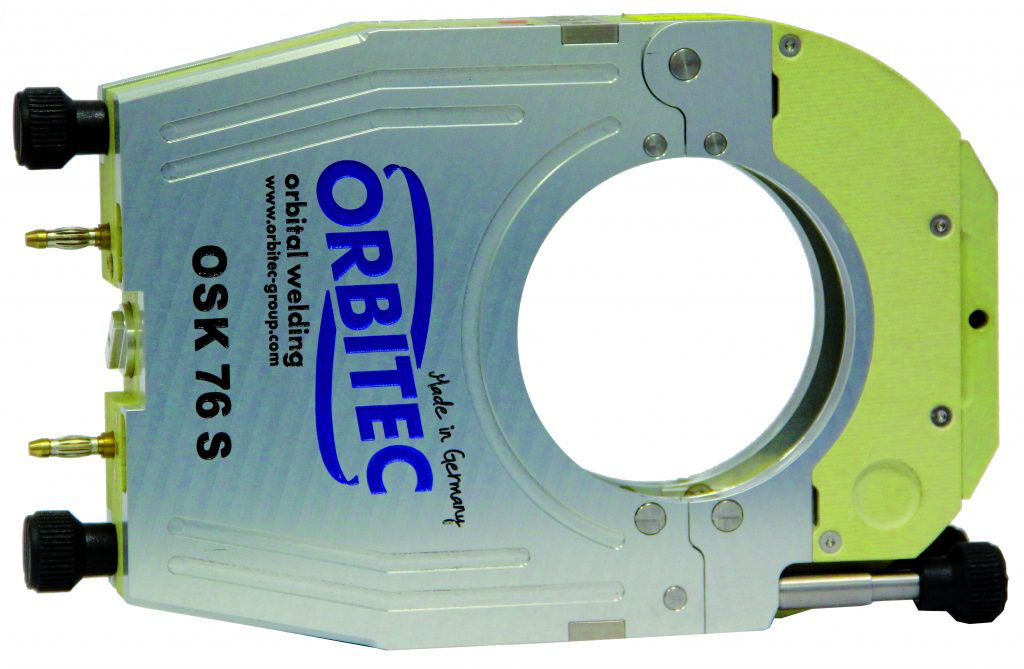

OSK 76 SW
Tube size:
OD 6 – 76,2 mm
Inch:
0,250″ – 3,000″
Weight:
2,6 kg
Item number:
1.0.2620W
Weld head type:

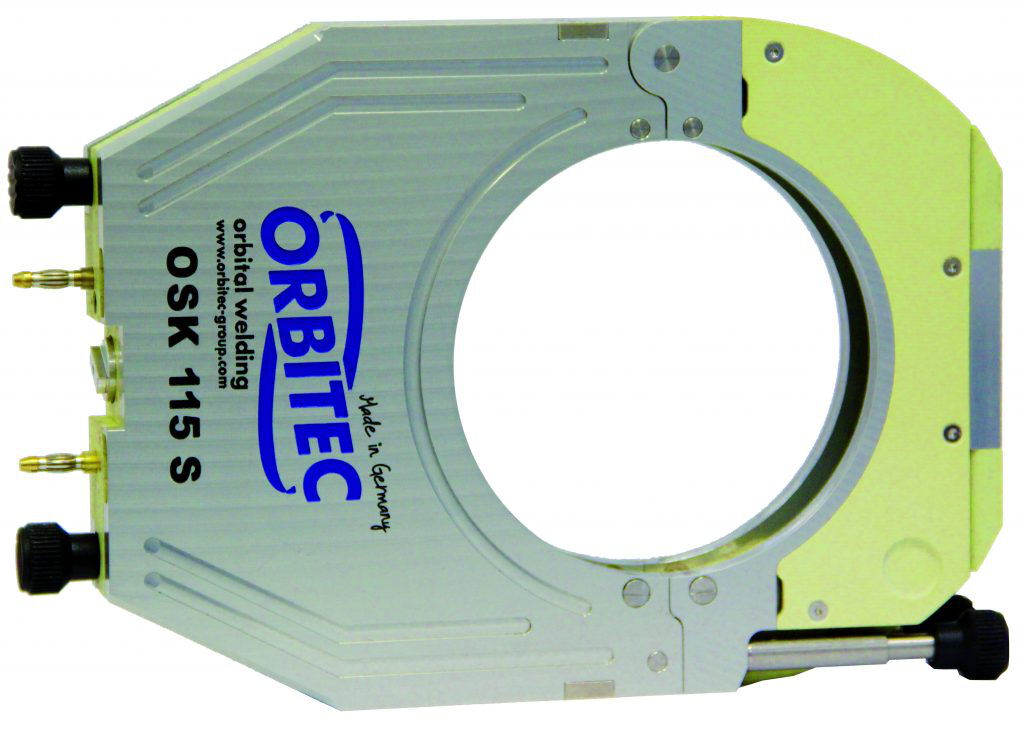

OSK 115 SW
Tube size:
OD 9,53 – 114,3 mm
Inch:
0,375″ – 4,500″
Weight:
3,4 kg
Item number:
1.1.2720W
Weld head type:

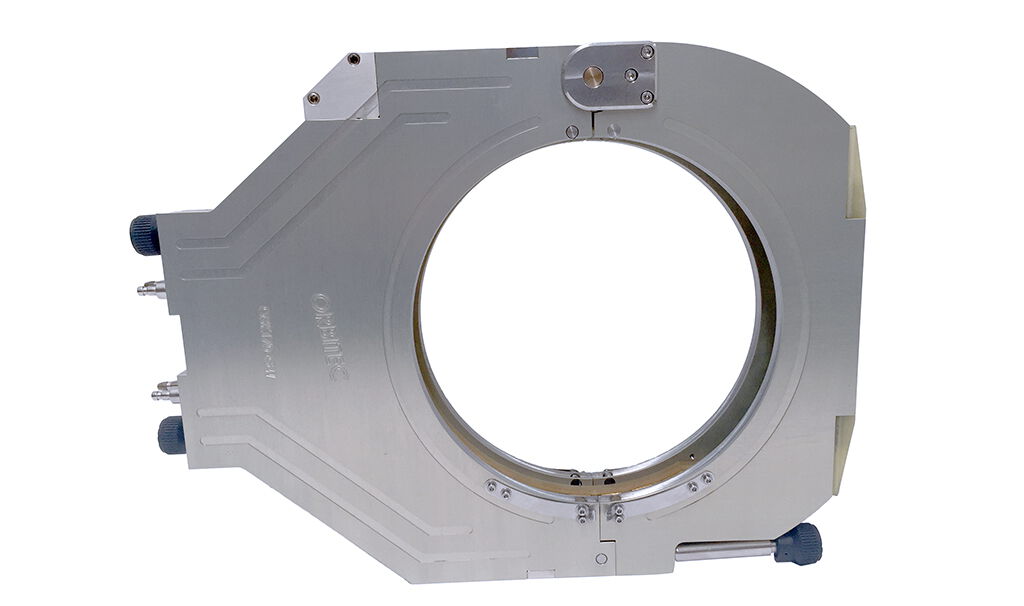

OSK 170 GW
Tube size:
OD 50 – 168.3 mm
Inch:
1.969″ – 6.626″
Weight:
7,5 kg
Item number:
1.3.2899
Consisting of a handle with control element (start/stop button and status display), weld head interface, motor / gearbox unit and 8 m hose package.
Item number:
1.3.2058
Orbitec design, manufacture and supply a comprehensive range of systems, products and accessories for the Orbital TIG Process. Our products are employed across a diverse range of industries including: Pharmaceutical, Biotechnology, Chemical, Food & Dairy, Semiconductor, Aerospace, Petrochemical, Offshore and Nuclear.
