The RBK 60 S is an extremely robust water-cooled weld head for a standard heat exchanger application up to an ID of 60 mm, modified to an ID of 99 mm or 120 mm. The head is pneumatically centred and is available with a rotating wire device and/or arc voltage control (AVC) as an option. The head can also be used with a pneumatic positioner instead of a balancer.
RBK 60 S WELD HEAD
with pneumatic centring incl. 8 m hose package, water-cooled | 1.3.3702
RBK 60 S WELD HEAD
with pneumatic centring and wire feed unit incl. hose package, 8 m, water-cooled | 1.3.3701
RBK 60 S WELD HEAD
with pneumatic centring, wire feed unit and AVC incl. hose package, 8 m, water-cooled | 1.3.3700
Weld head
Small torch incl. torch consumables and tungsten electrode Ø 2.4 mm
Water-cooled hose package, 8 m
Pull bar B
Transport case

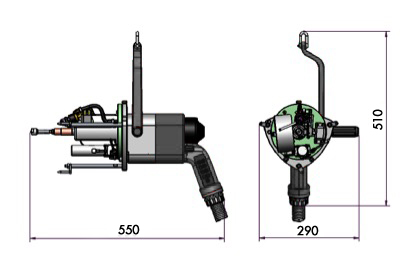

With pneumatic centring

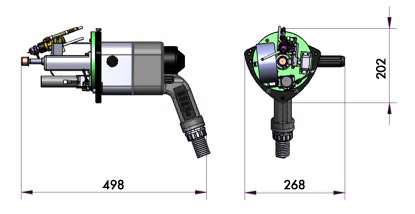

With pneumatic positioner
Orbitec design, manufacture and supply a comprehensive range of systems, products and accessories for the Orbital TIG Process. Our products are employed across a diverse range of industries including: Pharmaceutical, Biotechnology, Chemical, Food & Dairy, Semiconductor, Aerospace, Petrochemical, Offshore and Nuclear.
