Gas-cooled weld head for applications with extremely narrow space requirements, e.g. in the semiconductor industry. Specially designed to weld micro-fittings too. The design (specific gas flow management) and the material selection enable high thermal capacity, even without water cooling.
Includes handle and cable assembly, 6 m
Extremely narrow / compact design.
The head assembly is arranged in a way that makes it very easy to maintain.
6 m handle and cable assembly with practical handle (start/stop button and status display).
Weld head compatible with 9-500 clamping cassettes from Arc Machines

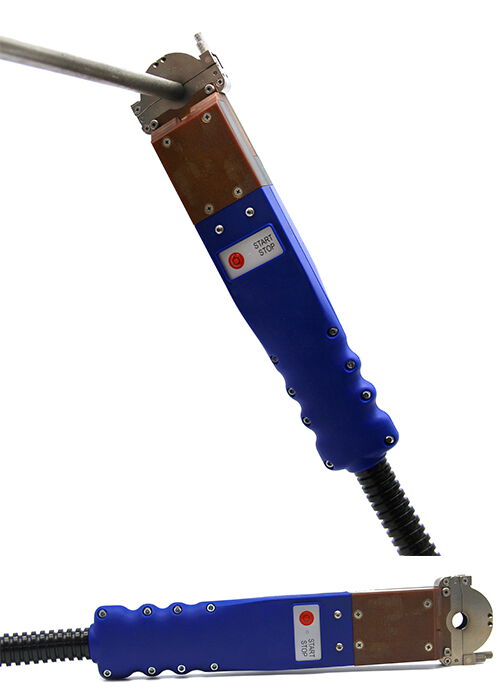

Weld Head:
OSK 13 S
Tube size Range mm:
DA 3,17 – 12,7 mm
Inch
0,125″ – 0,500″
Weight:
2,4 kg
Item number:
1.3.4000
For welding where space is extremely tight.
Item number:
1.3.4001

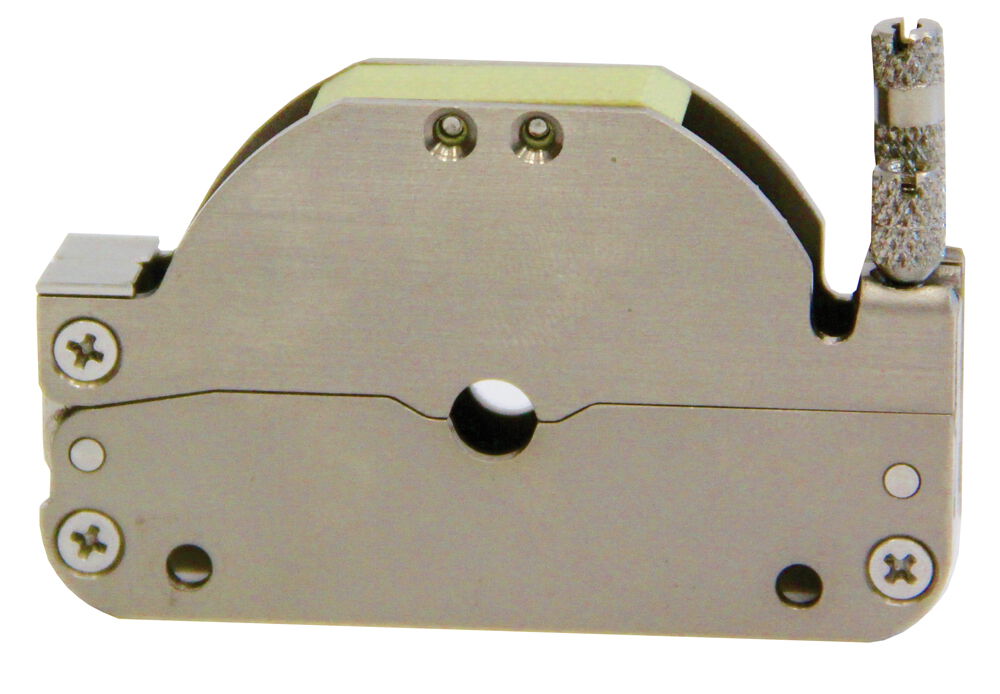

Orbitec TCA clamping cassette, structural width 12 mm (0.472 inch)
Clamping cassettes compatible with model 9-500 from Arc Machines
Cassette can be mounted in both directions
Our new generation of THREE gas-cooled weld heads that have been technically optimised and redesigned and have a tube size range of OD 6 – 114.3 mm / 0.250″ – 4.500″. Special design features and the material selection enable high thermal capacity, even without water cooling. The heads are even narrower and have a quick clamp system for the collets.

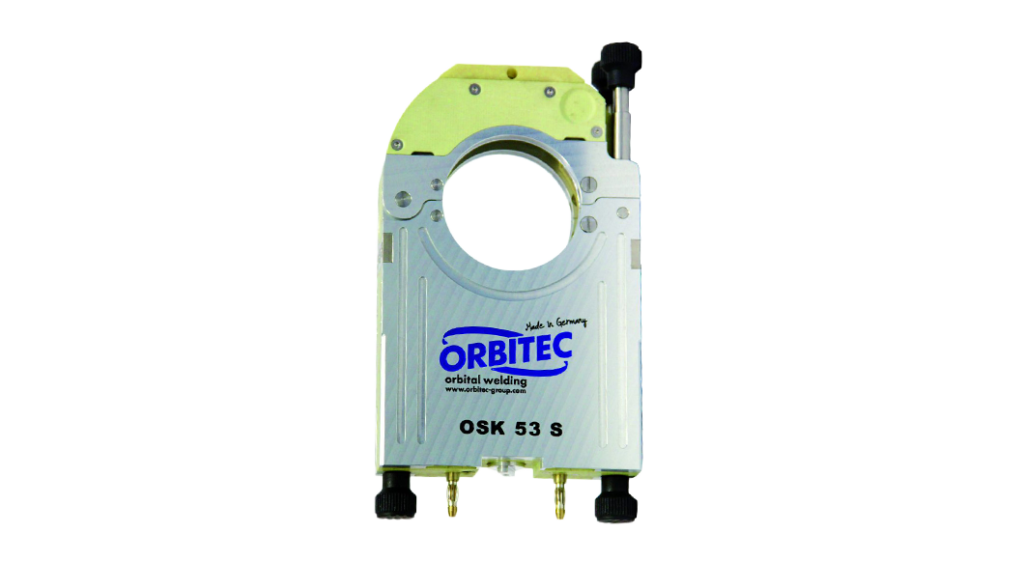

Weld Head:
OSK 53 S
Tube size range mm:
OD 6 – 53 mm
Inch
0,250″ – 2,087″
Weight:
2,1 kg
Item number:
1.0.2520

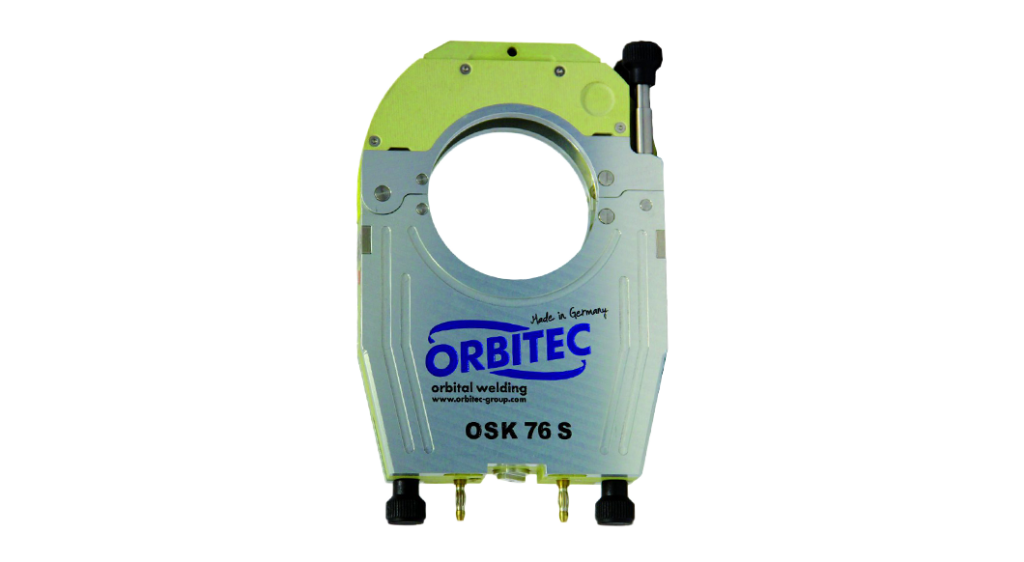

Weld Head:
OSK 76 S
Tube size range mm:
OD 6 – 76,2 mm
Inch
0,250″ – 3,000″
Weight:
2,6 kg
Item number:
1.0.2620

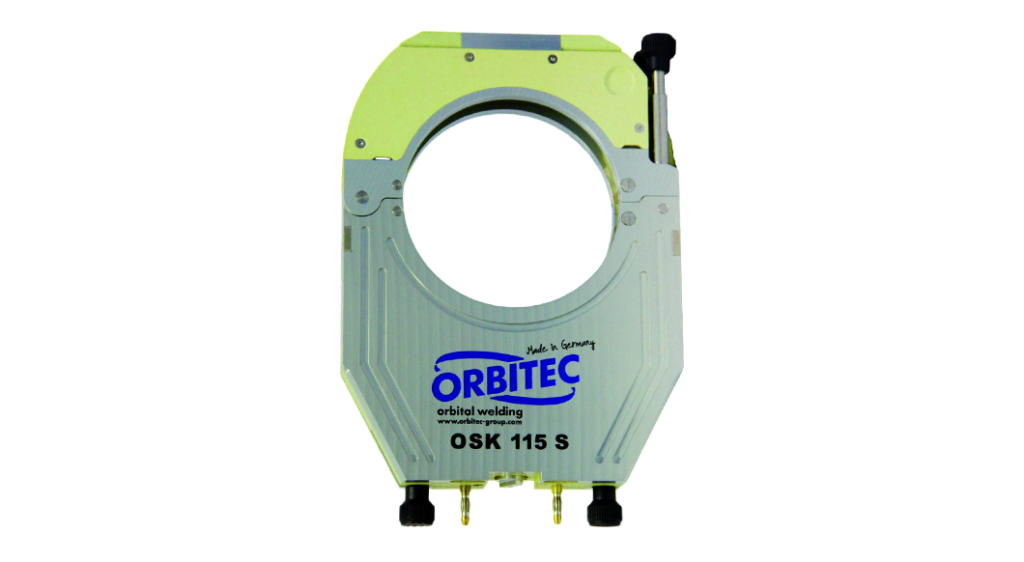

Weld Head:
OSK 115 S
Tube size range mm:
OD 9,53 – 114,3 mm
Inch
0,375″ – 4,500″
Weight:
3,4 kg
Item number:
1.1.2720
Item number:
1.3.2057
Our new generation of two gas-cooled, compact weld heads that have been technically optimised and redesigned, for smaller nominal widths and featuring clamping levers. The heads were also designed for particularly tight space conditions with a narrow handle.
Weld Head:

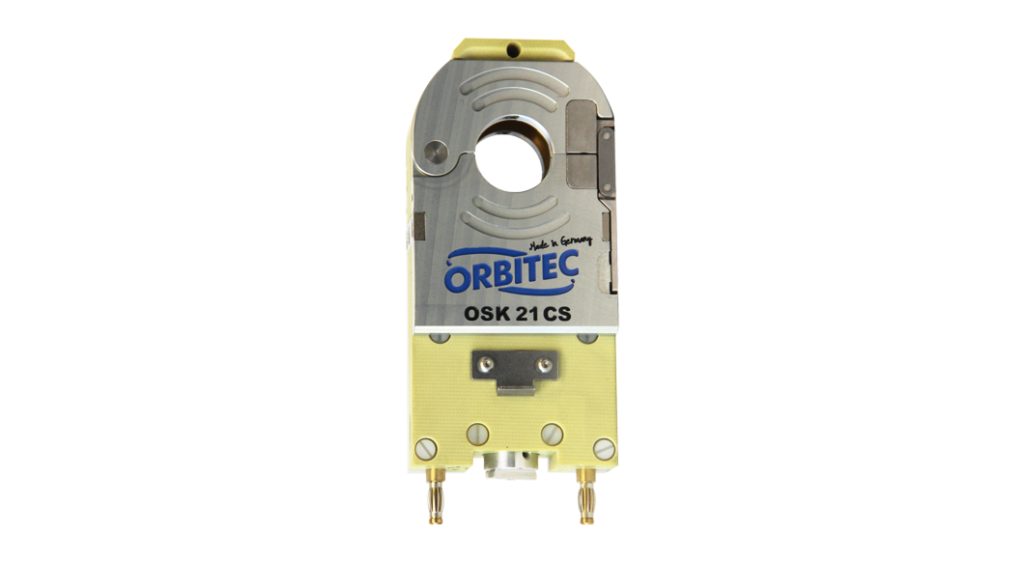

OSK 21 CS
Tube size range mm:
DA 3,17 – 21,3 mm
Inch
0,125“ – 0,839“
Weight:
0,8 kg
Item number:
1.0.2820

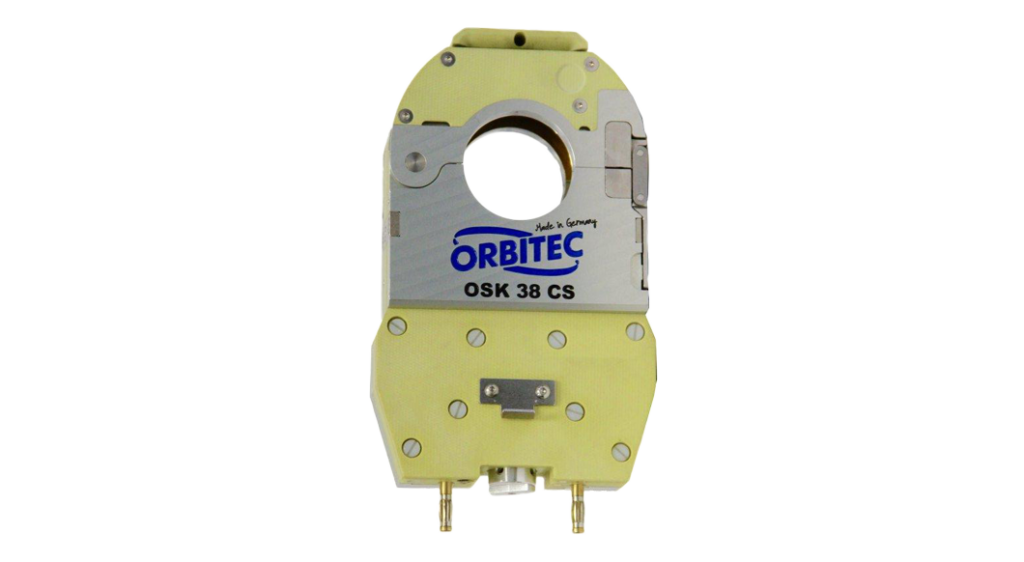

Weld head type:
OSK 38 CS
Tube size range mm:
DA 3,17 – 38,1 mm
Inch
0,125″ – 1,500″
Weight:
1,3 kg
Item number:
1.0.2920

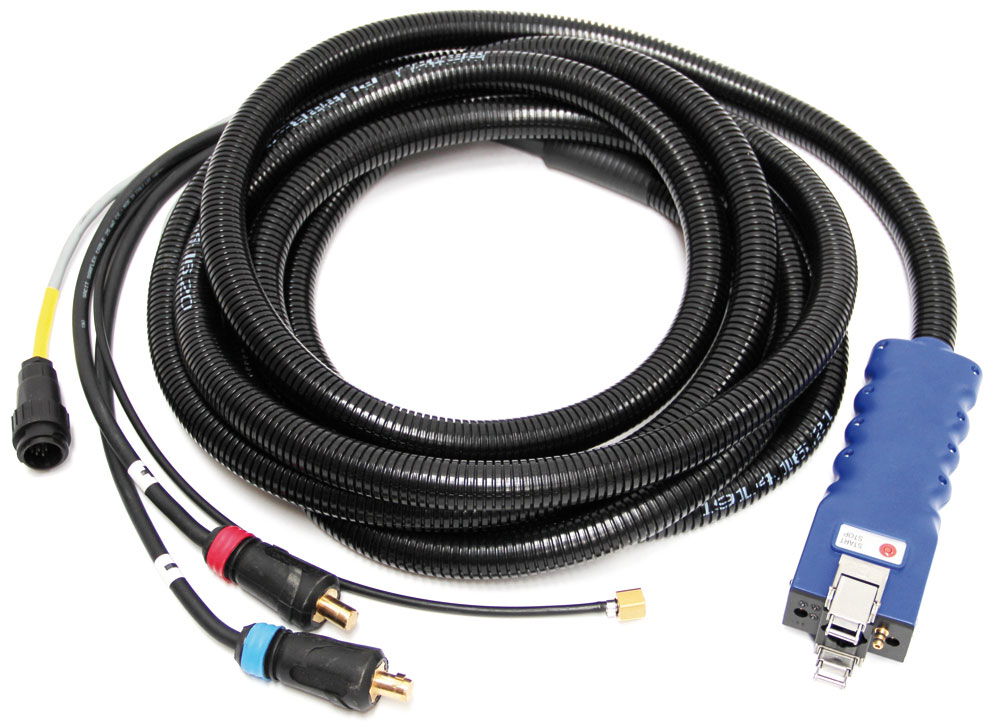

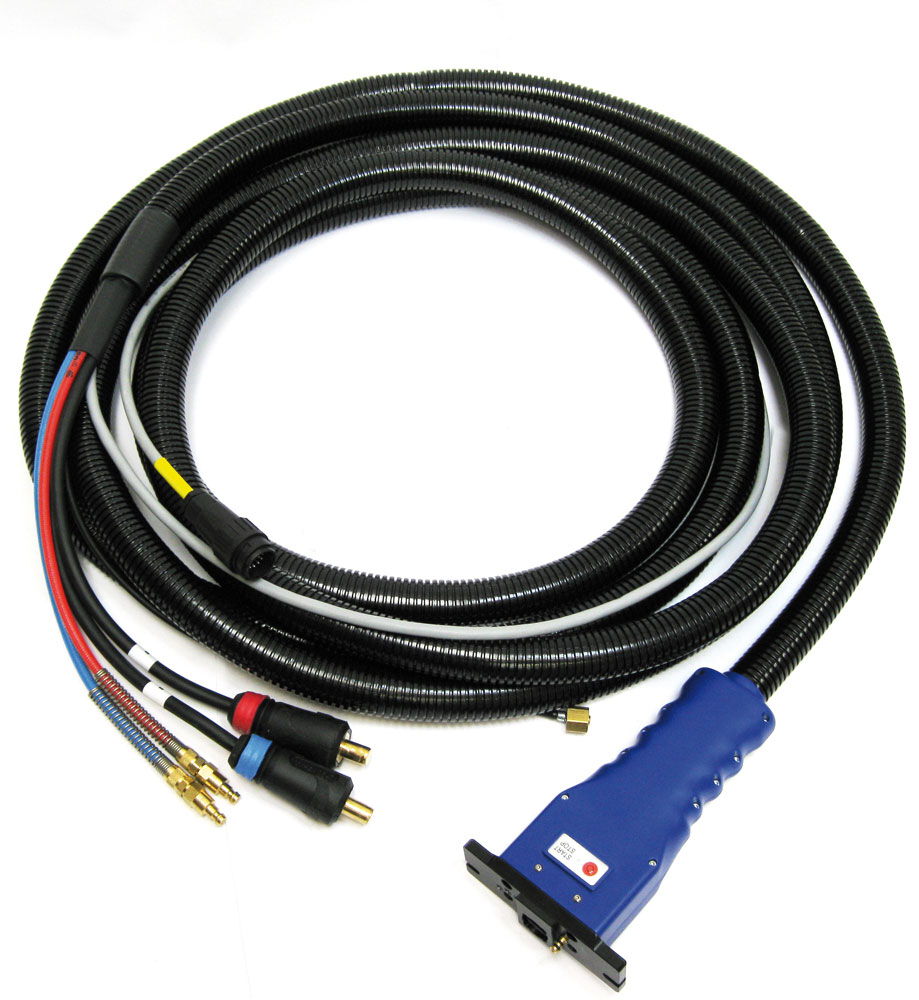

Handle and cable assembly for OSK C and CS, consisting of a handle with control element (start/stop button and status display), weld head interface, motor / gearbox unit and 8 m hose package
Item number:
1.3.2003

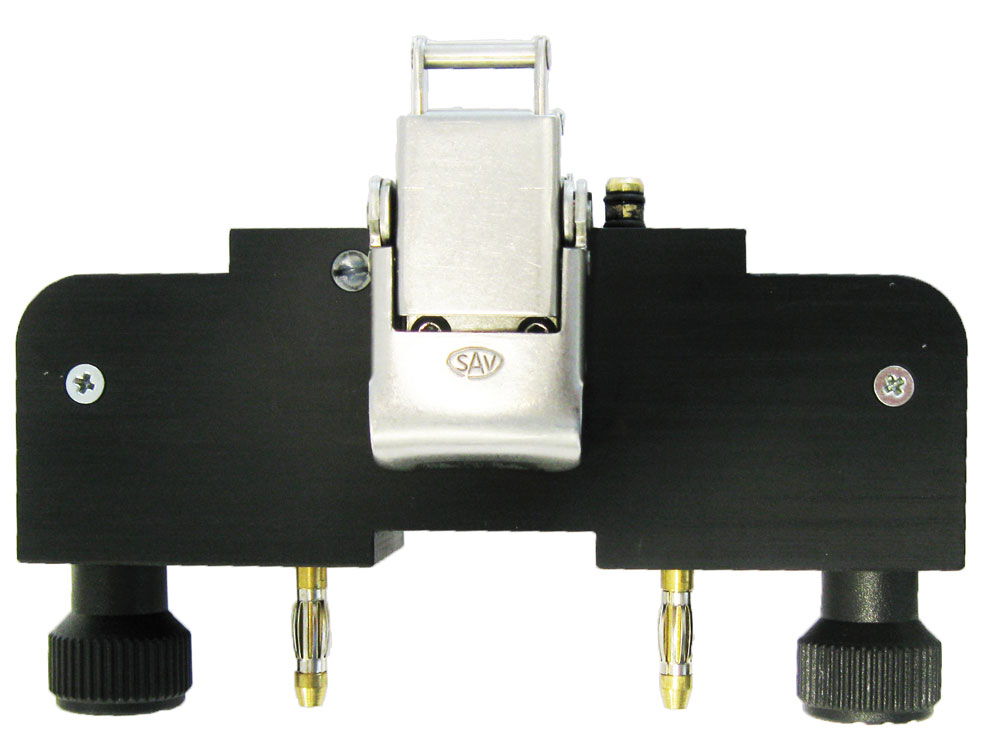

Advantage: While using this flange, you can also use the OSK C and CS weld heads with the OSK G or S handle and cable assembly.
Item number:
1.3.2011
